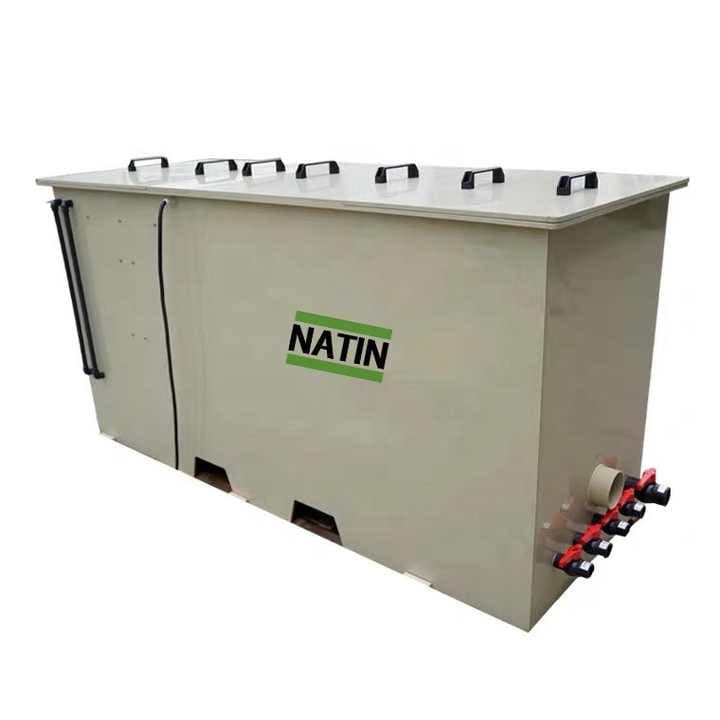

Integrated Rotary Drum Filter with Bio & UV - 70 m³/h
Integrated rotary drum filter with bio filtration and UV sterilization for aquaculture. Handles 70 m³/h, 75 µm precision, suitable for freshwater and seawater.
Integrated Rotary Drum Filter with Bio & UV - 70 m³/h
SKU: integrated-rotary-drum-system-automatic-fish-farm-rotary-drum-filter-and-with-bio-filter-and-uv-sterilization-system
Integrated rotary drum filter with bio filtration and UV sterilization for aquaculture. Handles 70 m³/h, 75 µm precision, suitable for freshwater and seawater.
Integrated rotary drum filter with bio filtration and UV sterilization for aquaculture. Handles 70 m³/h, 75 µm precision, suitable for freshwater and seawater.
Specifications
| Place of Origin | Sichuan, China |
| Specification | NTRDS-70 |
| Manufacturer | NATIN |
| Instruction for use | reference operation manual |
| Brand Name | NATIN |
| Model Number | NTRDS-70 |
| Filter precision | 75 μm |
| Flow Rate | 70m³/h |
| UV Power | 40*2 |
| Air pump Power | 80W |
| Cleaning pump power | 1000W |
| Drum motor power | 15W |
| shell material | PP |
| Certificate | ISO9001 |
| Use range | freshwater seawater |
| Usage | Fish Farming Aquaclture |
| Selling Units | Single item |
| Single package size | 120X80X80 cm |
| Single gross weight | 60.000 KG |
Features & Benefits

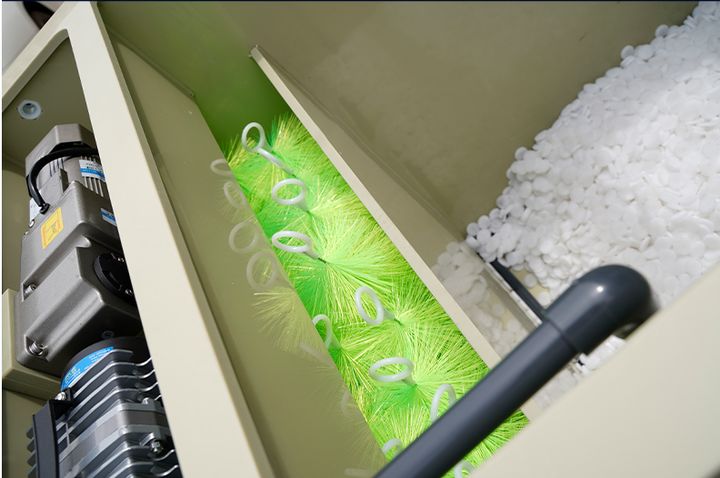

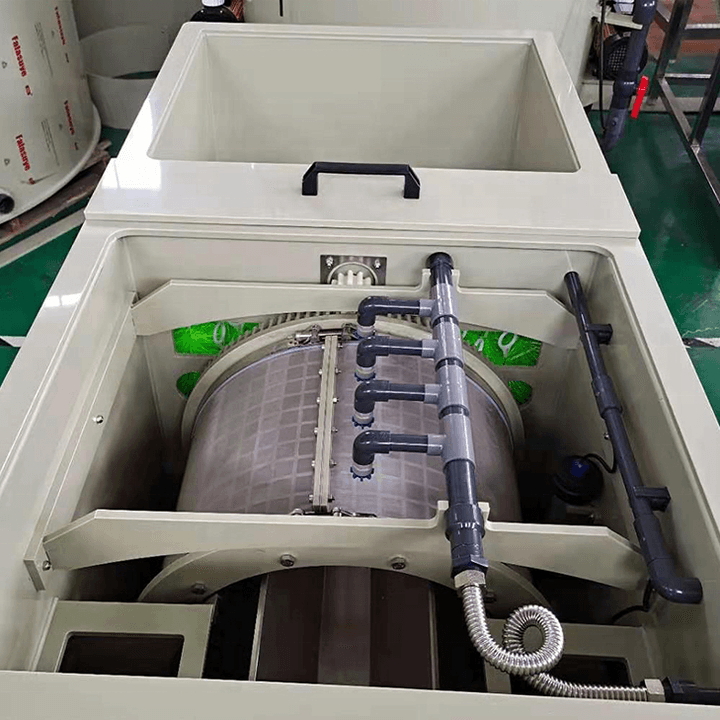

- Three-stage filtration: rotary drum mechanical filter, integrated bio filter, and dual 40W UV sterilization
- High flow rate of 70 m³/h with 75 µm filter precision for efficient solids removal

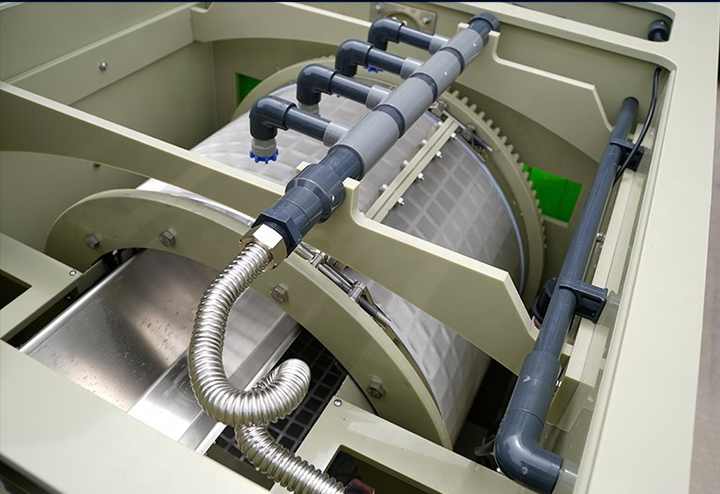

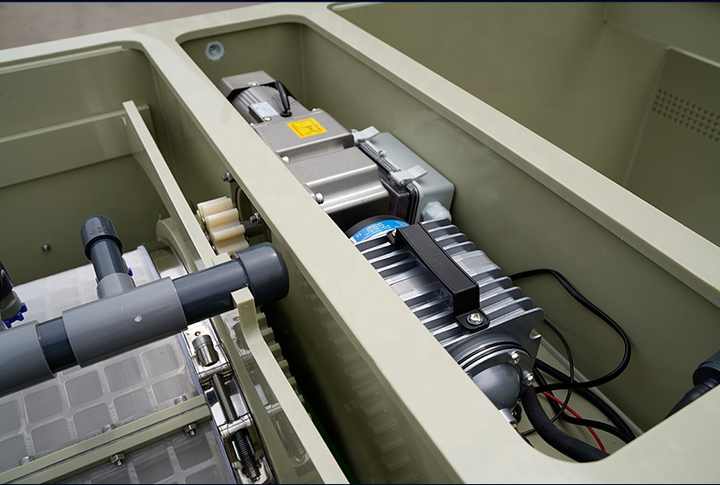

- Automatic cleaning system with 1000W cleaning pump and 15W drum motor for self-maintenance
- Constructed from durable PP (polypropylene) shell, corrosion-resistant for both freshwater and seawater use
- Includes 80W air pump for aeration and bio filter support, ISO9001 certified
Applications
- Fish farming aquaculture systems
- Freshwater recirculating aquaculture systems (RAS)
- Seawater fish farms and hatcheries
- Integrated multi-trophic aquaculture setups
