Integrated Rotary Drum Filter - 60m³/h
Integrated rotary drum filter for RAS fish farming and koi ponds. 60m³/h flow, 50-150µm precision, UV sterilization, suitable for fresh and seawater.
Integrated Rotary Drum Filter - 60m³/h
SKU: hot-2023-new-integrated-rotary-drum-filter-ras-fish-farming-equipment-koi-pond-filter-system
Integrated rotary drum filter for RAS fish farming and koi ponds. 60m³/h flow, 50-150µm precision, UV sterilization, suitable for fresh and seawater.
Integrated rotary drum filter for RAS fish farming and koi ponds. 60m³/h flow, 50-150µm precision, UV sterilization, suitable for fresh and seawater.
Specifications
| Specification | NTRDS-60 |
| Manufacturer | NATIN |
| Instruction for use | reference operation manual |
| Brand Name | NATIN |
| Model Number | NTRDS-60 |
| Filter precision | 50-150 μm |
| Flow Rate | 60m³/h |
| UV Power | 40*3 |
| Air pump Power | 80W |
| Cleaning pump power | 1000W |
| Drum motor power | 15W |
| shell material | PP |
| Certificate | ISO9001 |
| Use range | freshwater seawater |
| Product name | Integrated Rotary Drum Filter |
| Packaging Details | Wooden packing |
| Port of dispatch | shanghai |
| Selling Units | Single item |
| Single package size | 120X80X80 cm |
| Single gross weight | 65.000 KG |
| Packaging examples | Supply Ability |
Features & Benefits

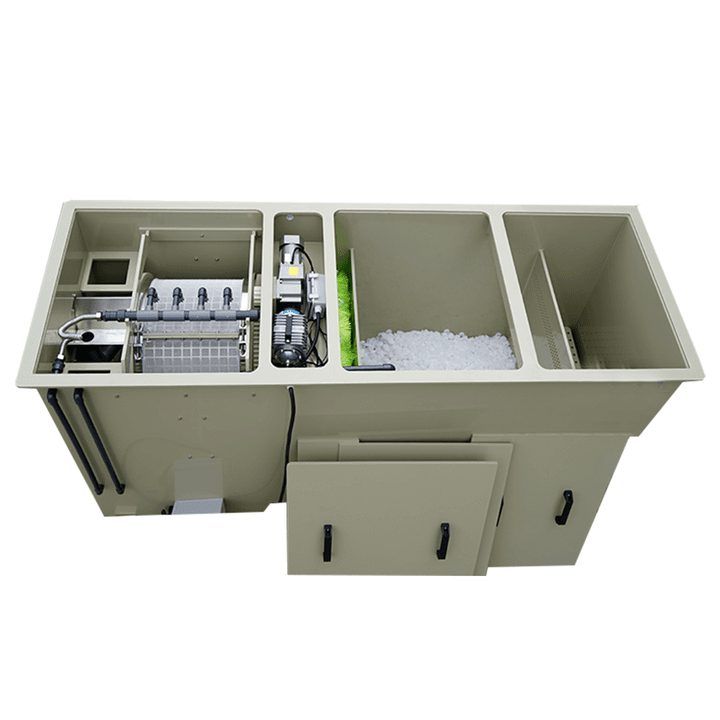

- Integrated design combines mechanical filtration, UV sterilization, and self-cleaning in one unit.
- High flow rate of 60 m³/h suitable for medium to large aquaculture systems.
- Adjustable filter precision from 50 to 150 µm to capture fine solids.
- Triple UV sterilization with 40W x 3 lamps for effective water disinfection.
- Constructed from durable PP material, corrosion-resistant for both freshwater and seawater.
Applications
- RAS fish farming systems
- Koi ponds and ornamental fish ponds
- Aquaculture hatcheries
- Recirculating water systems
Features
Integrated design combines mechanical filtration, UV sterilization, and self-cle
High flow rate of 60 m³/h suitable for medium to large aquaculture systems.
Adjustable filter precision from 50 to 150 µm to capture fine solids.
Triple UV sterilization with 40W x 3 lamps for effective water disinfection.
Constructed from durable PP material, corrosion-resistant for both freshwater an
